Explore 2027 Mercedes-Benz Sprinter 3500 24SRB Floorplan

Home > Solera > 24SRB

The Solera 24SRB floorplan has one entry and one slide out. Exterior features include: 15'6" awning and outside entertainment. Interiors features include: murphy bed, rear bathroom and bunk over cab.

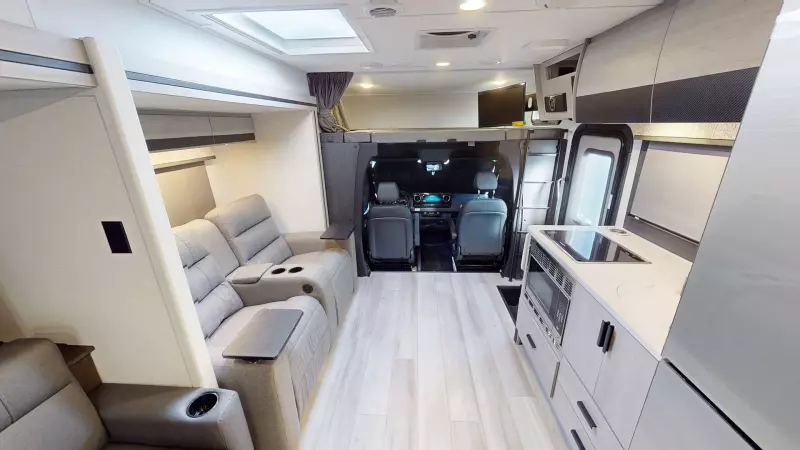

The Solera 24SRB is built on the Mercedes-Benz Sprinter 3500 chassis. It features a unique Murphy Bed in the central living area to maximize available space, in a slideout that provides even more elbow room. The kitchen area is fully equipped for meals on the go, with a 10.7 cu ft 12V refrigerator, recessed 2-burner range with flush glass cover, and a 1.3 cu ft convection microwave oven. Overhead cabinets and a dedicated closet, plus hidden drawers behind the TV, provide ample storage. The bathroom takes up the rear wall of the unit and includes a 24" x 36" shower, commode, sink with medicine cabinet, plus a linen closet.

Wheelbase: 170"
GVWR: 11,030 lb.
GCWR: 15,250 lb.
GAWR Front: 4,080 lb.
GAWR Rear: 7,720 lb.
Fuel Capacity: 26 gal.
LP Tank Capacity: 70 lb.
Exterior Length: 25' 5"
Exterior Height: 11' 3"
Exterior Width: 95"
Fresh Water: 35 gal.
Gray Water: 32 gal.
Black Water: 32 gal.
Awning Size: 15'6"

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
