Explore 2027 Ford E350/Chevy 3500 Chassis 22N Floorplan

Home > Solera > 22N

The Solera 22N floorplan has one entry and zero slide outs. Exterior features include: 15' 6" awning. Interiors features include: bunk over cab, u-dinette and dinette.

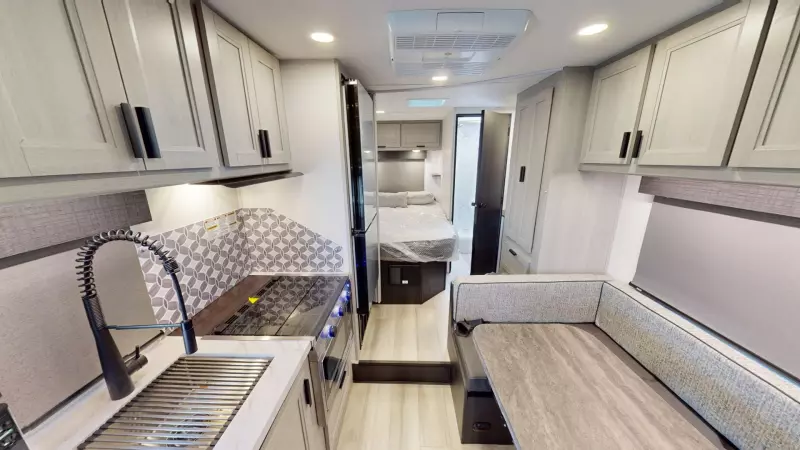

The Solera 22N is built on the Ford E350 chassis. The corner queen bed is conveniently next to the rear corner bathroom. The kitchen has a 10.7 cu ft 12V refrigerator, recessed 3-burner range with flush glass cover, and a 1.3 cu ft convection microwave oven. Overhead cabinets provide ample storage. This model includes a U-shaped dinette, which transforms into an extra sleeping space too. The 60" x 80" bunk over cab also offers yet another sleeping spot with LED TV for entertainment.

Wheelbase: 159"
GVWR: 12,300 lb.
GCWR: 20,000 lb.
GAWR Front: 4,300 lb.
GAWR Rear: 8,600 lb.
Fuel Capacity: 57 gal.
LP Tank Capacity: 41 lb.
Exterior Length: 25' 0"
Exterior Height: 11' 3"
Exterior Width: 101"
Fresh Water: 44 gal.
Gray Water: 39 gal.
Black Water: 39 gal.
Awning Size: 15' 6"

Wheelbase: 158"
GVWR: 12,500 lb.
GCWR: 18,500 lb.
GAWR Front: 5,000 lb.
GAWR Rear: 9,600 lb.
Fuel Capacity: 55 gal.
LP Tank Capacity: 41 lb.
Exterior Length: 24' 6"
Exterior Height: 11' 3"
Exterior Width: 101"
Fresh Water: 44 gal.
Gray Water: 39 gal.
Black Water: 39 gal.
Awning Size: 15' 6"

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
