Explore 2027 Forester Full Feature Models (Ford) 3011DS Floorplan

Home > Forester > 3011DS

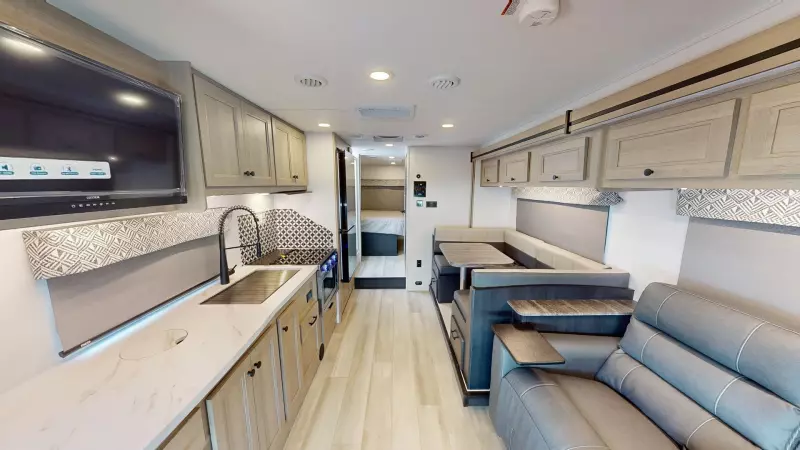

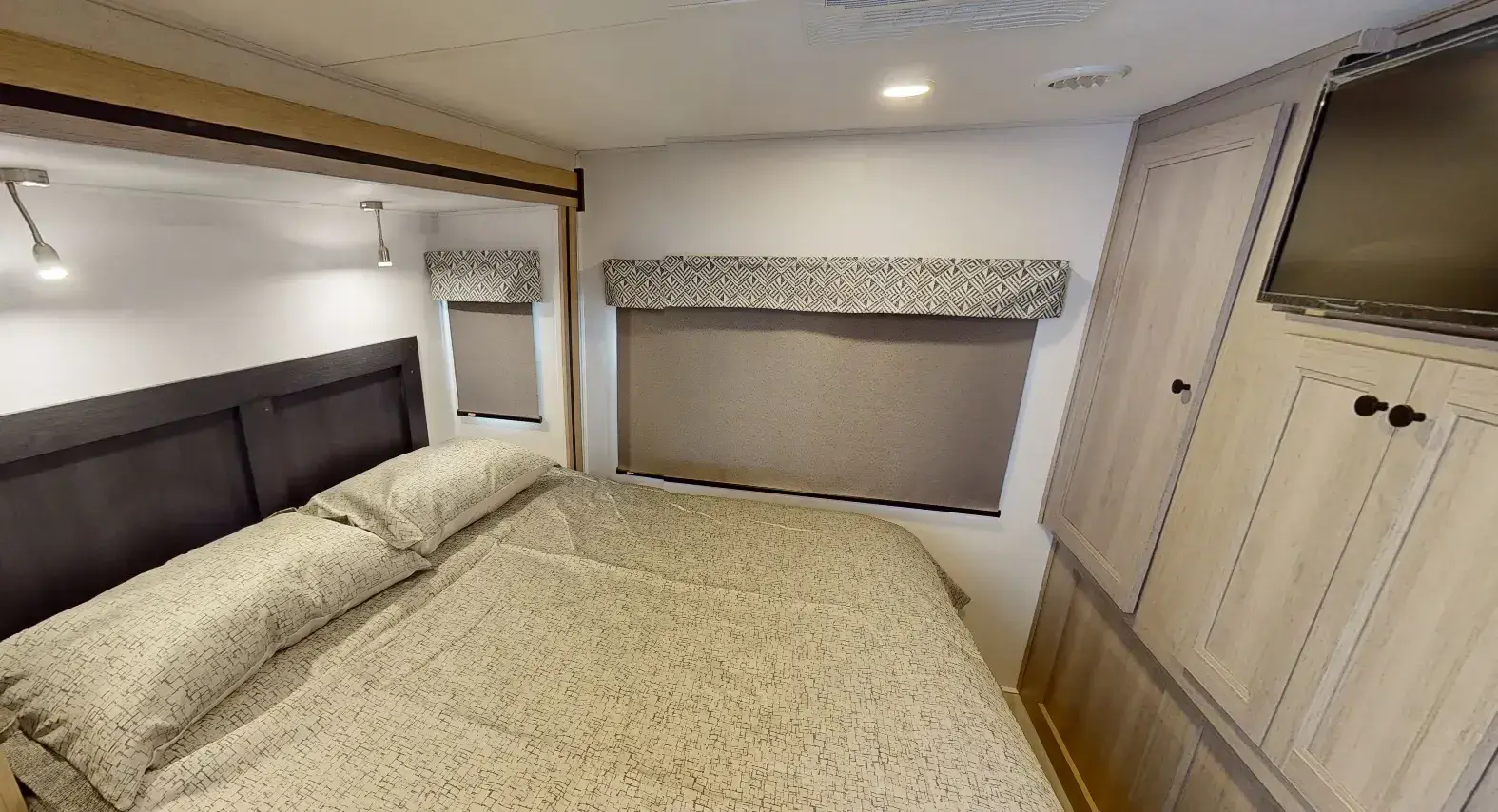

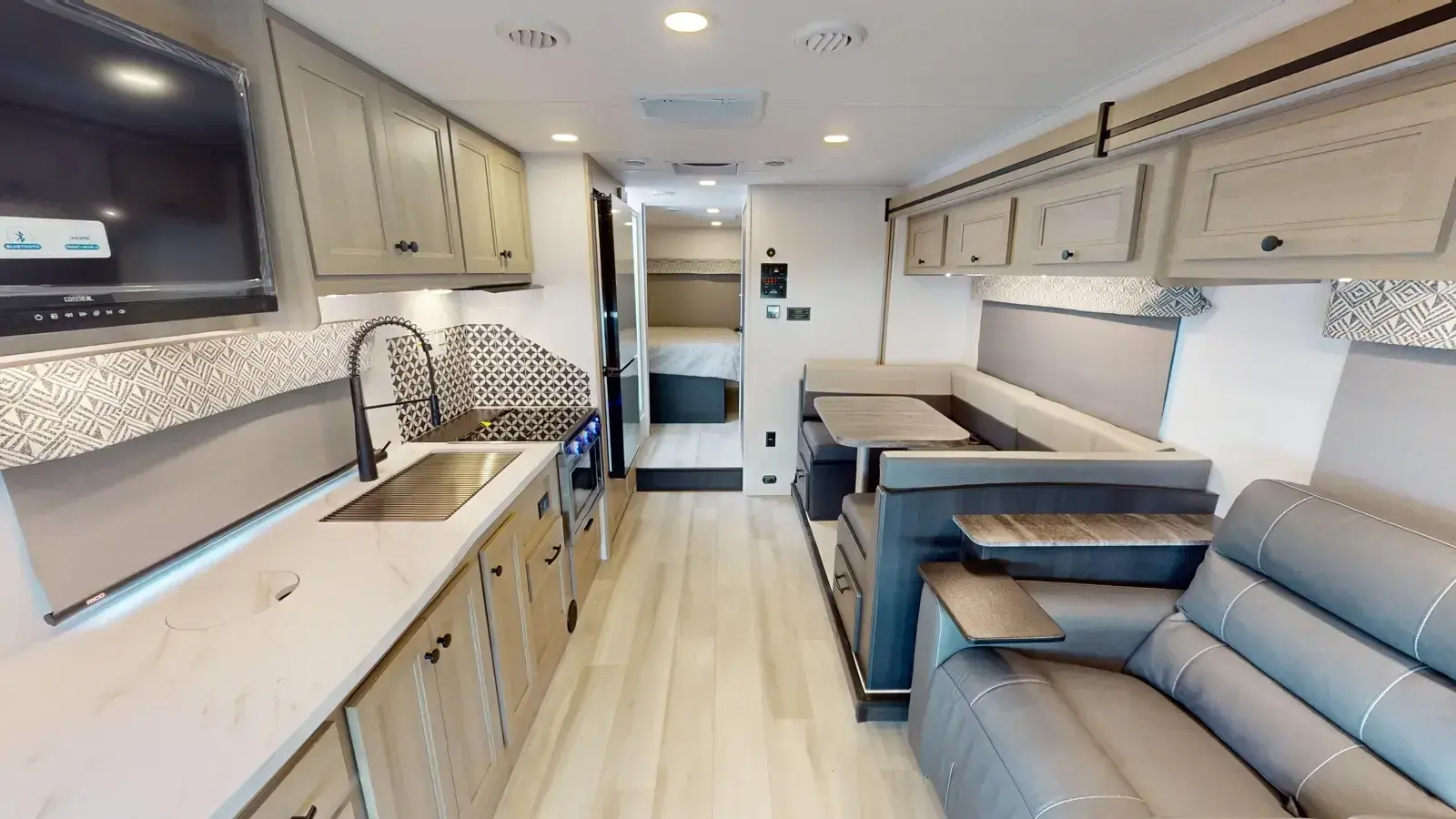

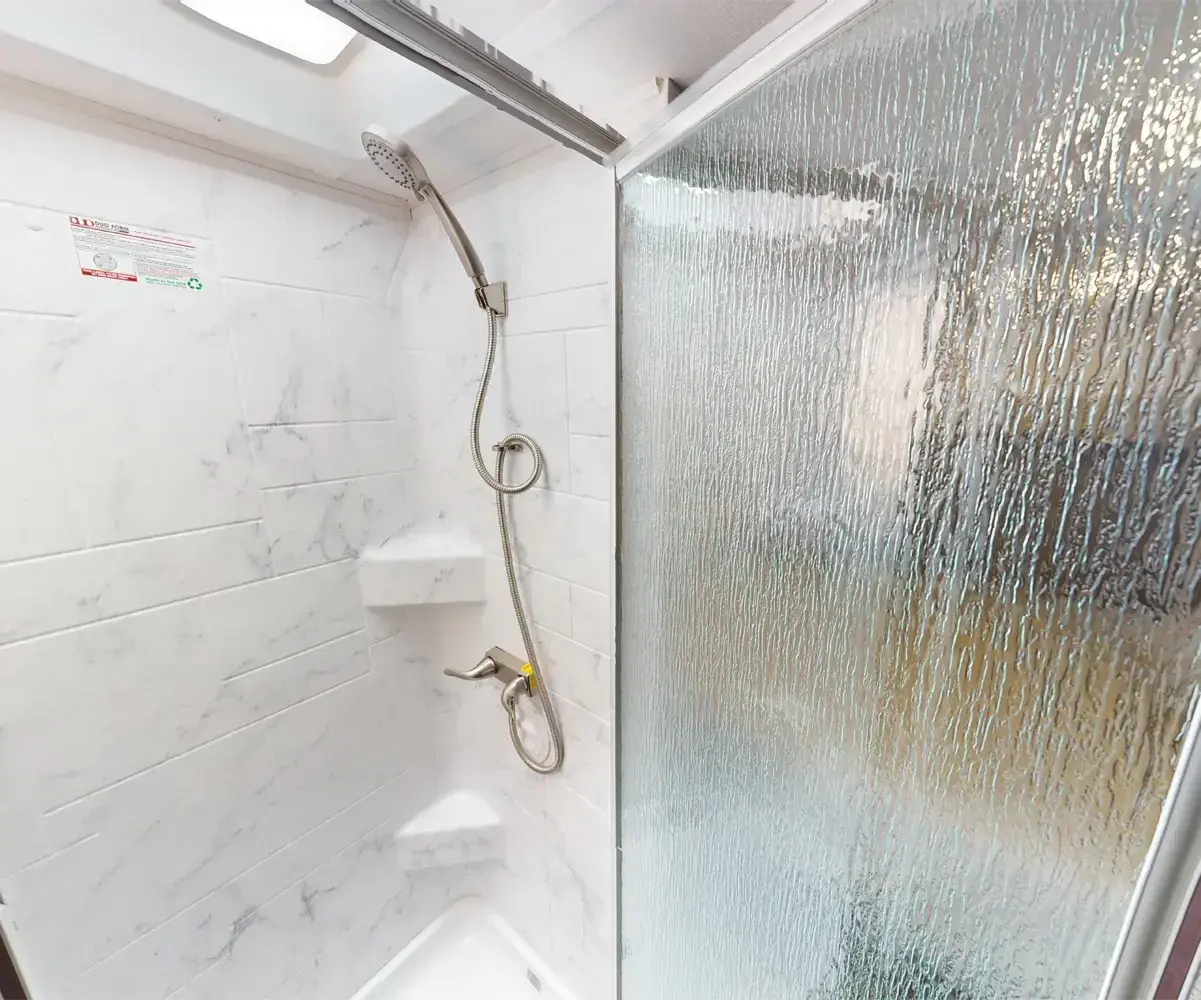

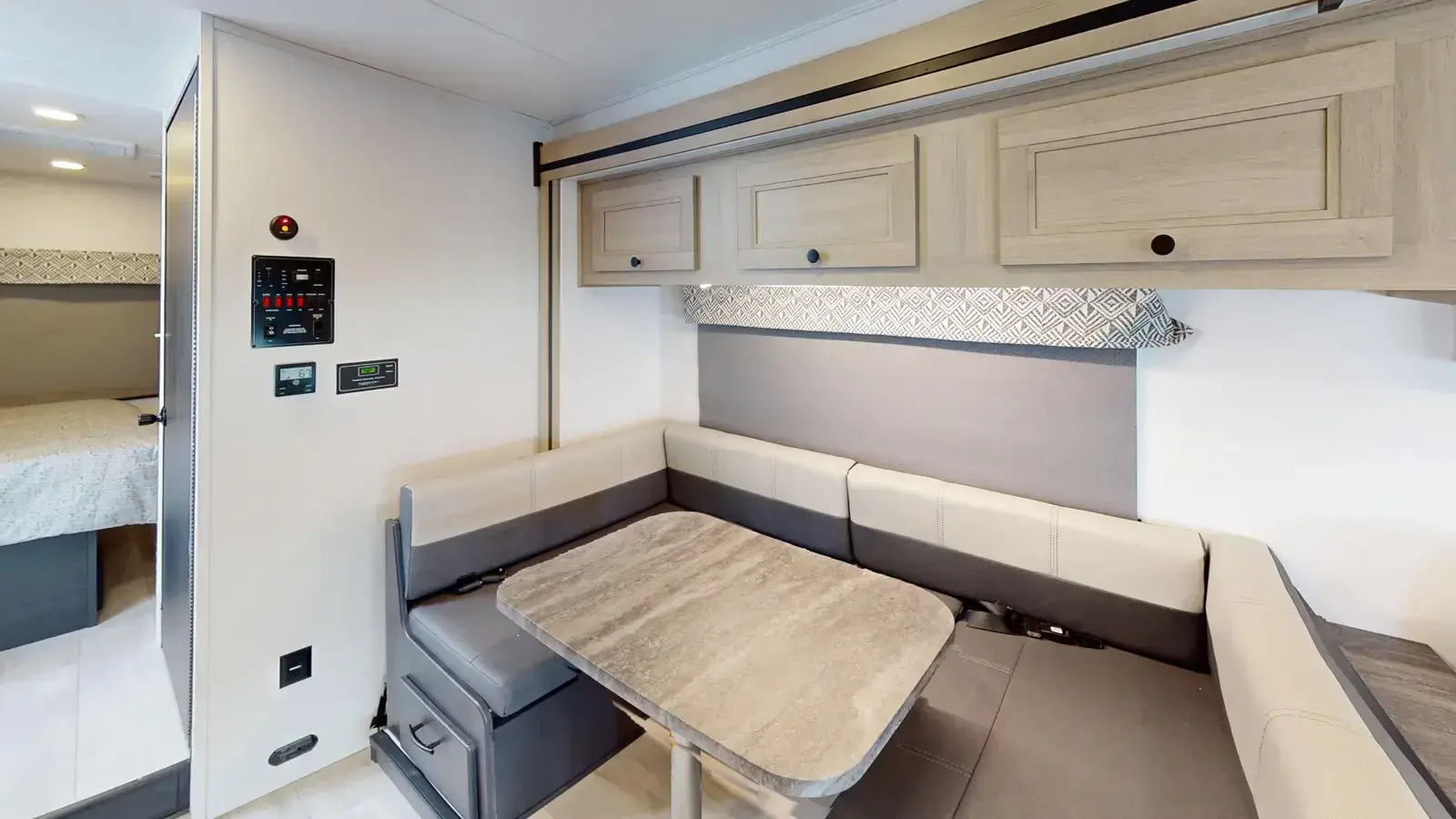

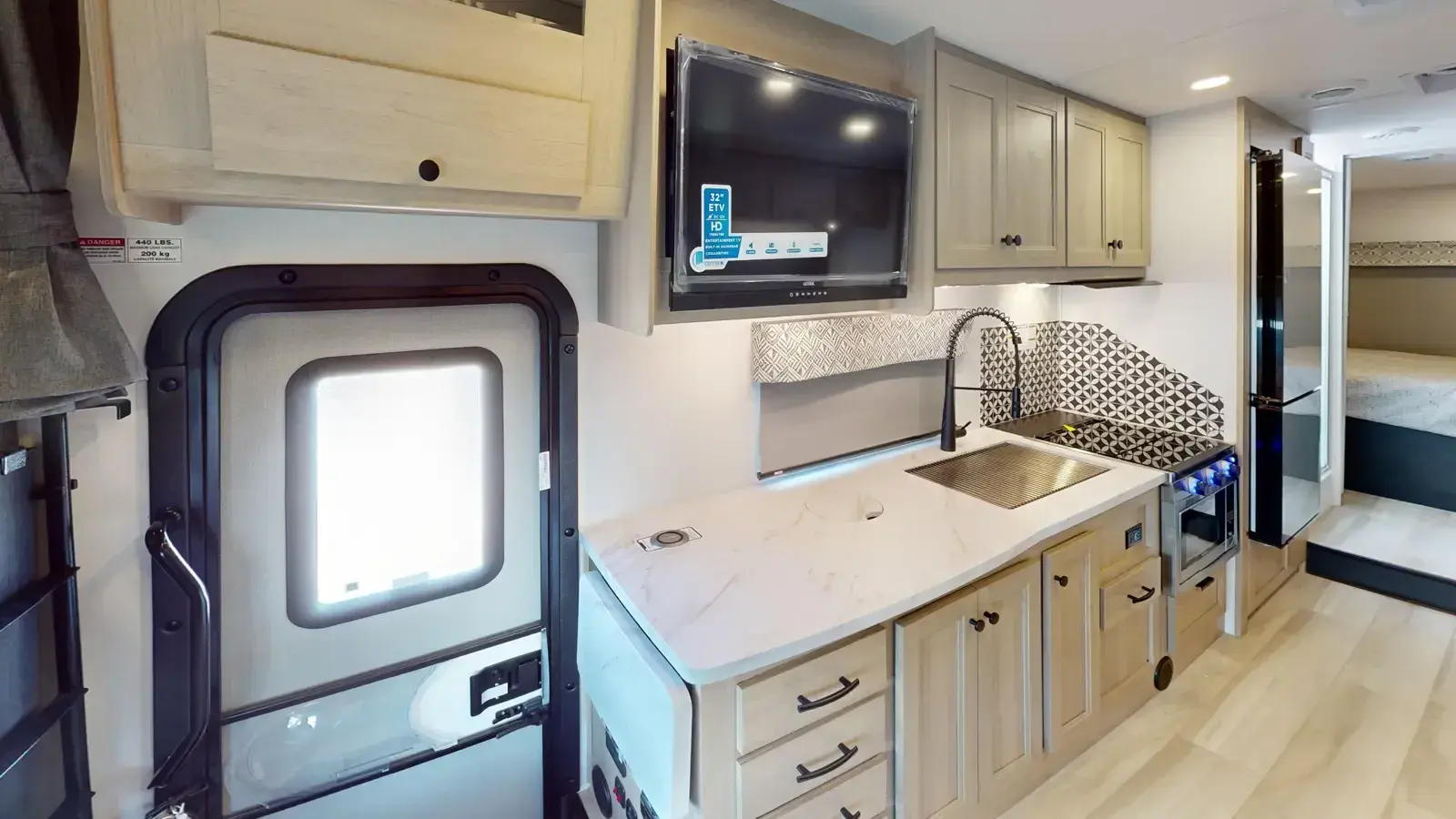

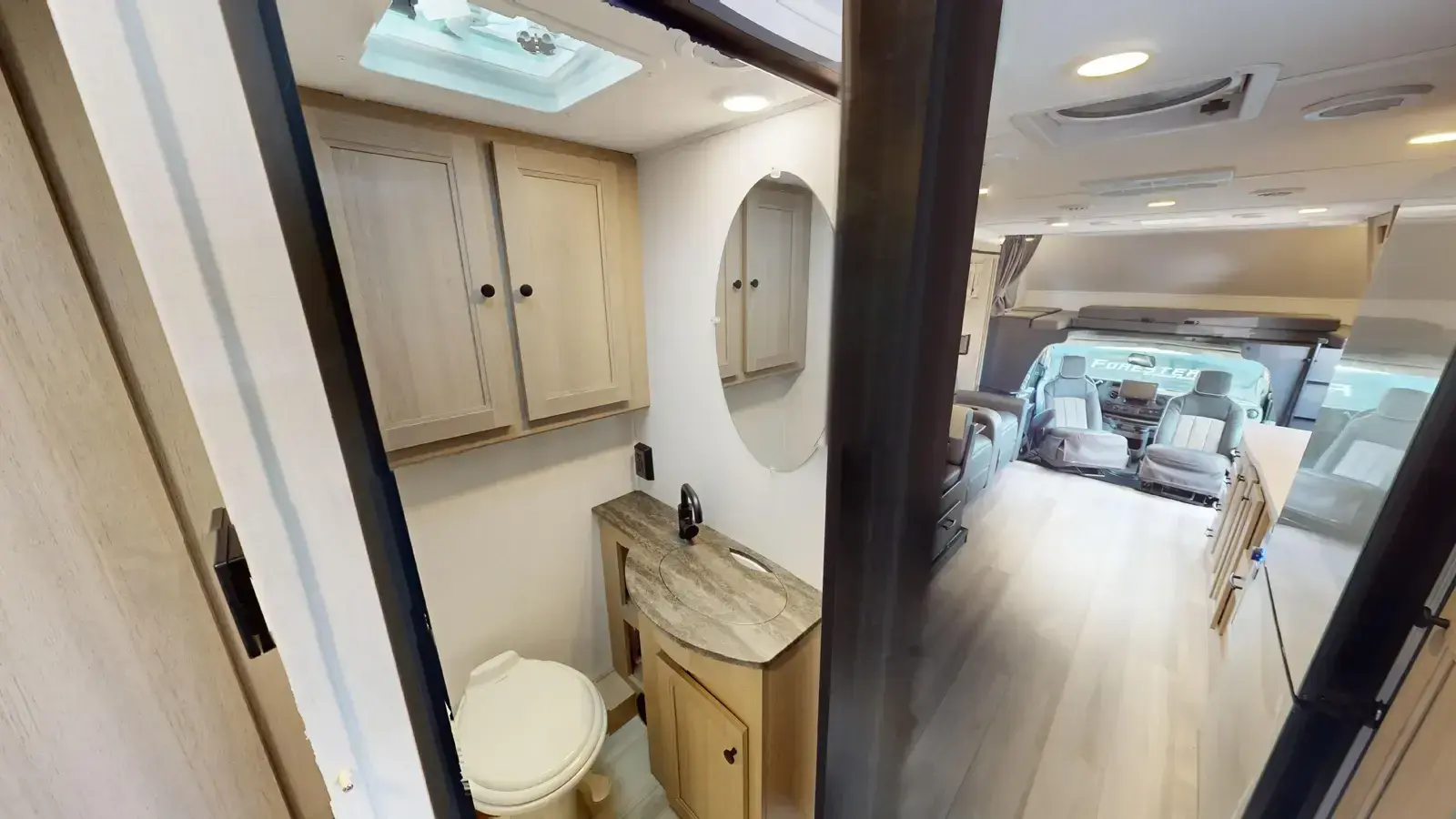

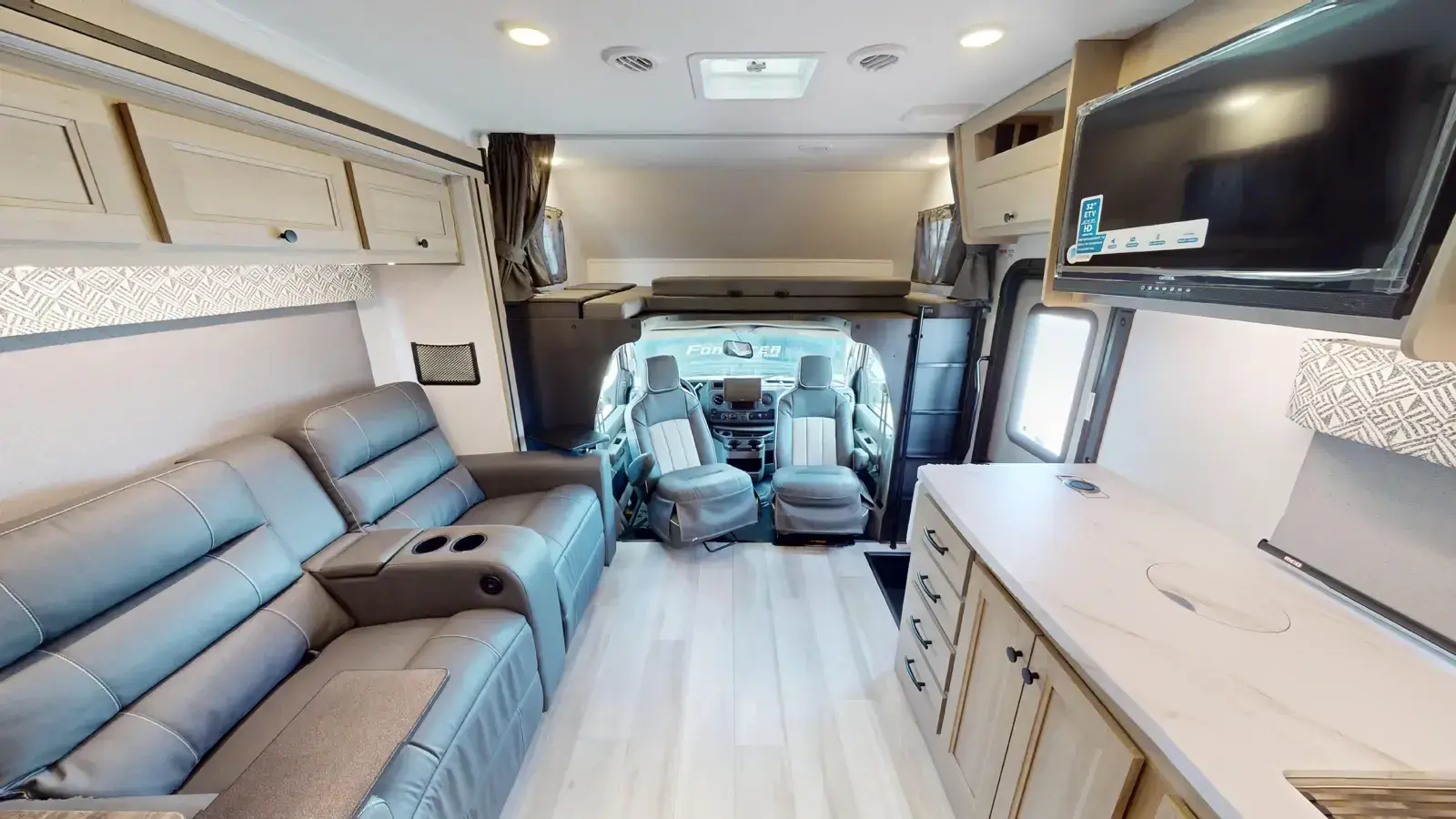

The 3011DS has 2 slide outs, 1 on the off-door side and 1 on the door side. Exterior features include a 15 ft. 6 in. awning and optional 12V TV. Interior layout from front to back includes a front 60 x 80 cab over bunk with 12V TV (optional Trekker cab with built-in entertainment center in place of bunk); off-door side slide out holding a U-Dinette, overhead cabinet, and sofa (optional 12V power theater seat in place of sofa); door side kitchen with pantry, 12V refrigerator, stovetop with convection microwave, overhead cabinet, sink, 12V TV and flip-up countertop extension; walk-through bathroom with 24 x 36 shower, toilet, medicine cabinet and vanity; rear bedroom with a 60 x 74 Queen bed in a door side slide out; and wardrobes, linen storage and a 12V TV across from the foot of the bed.

The 3011DS has 2 slide outs and sleeps 8. Outside, there's a 12V TV and storage compartments. Inside, you have a rear queen bedroom with a 60" x 74" walkaround bed and wardrobes, a split bathroom and a living area. The kitchen offers countertops, a pantry, 12V 10 cu ft refrigerator, convection microwave, and 3-burner stovetop. Overhead cabinets provide loads of storage. There's a large U-shape dinette next to a sofa (opt. 12V power theater seats). A cab over bunk provides a 60" x 80" mattress.

Wheelbase: 220"
GVWR: 14,500 lb.
GCWR: 22,000 lb.
GAWR Front: 5,000 lb.
GAWR Rear: 9,600 lb.
Fuel Capacity: 55 gal.
LP Tank Capacity: 41 lb.
Exterior Length: 32' 3"
Exterior Height: 11' 3"
Exterior Width: 101"
Fresh Water: 44 gal.
Gray Water: 39 gal.
Black Water: 39 gal.
Awning Size: 15' 6"

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
