Explore 2027 Forester LE (Chevy & Ford) 2551DSLE Floorplan

Home > Forester > 2551DSLE

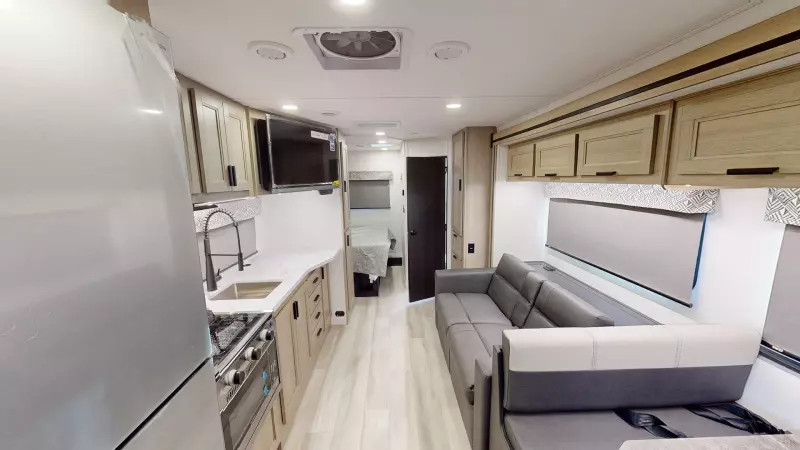

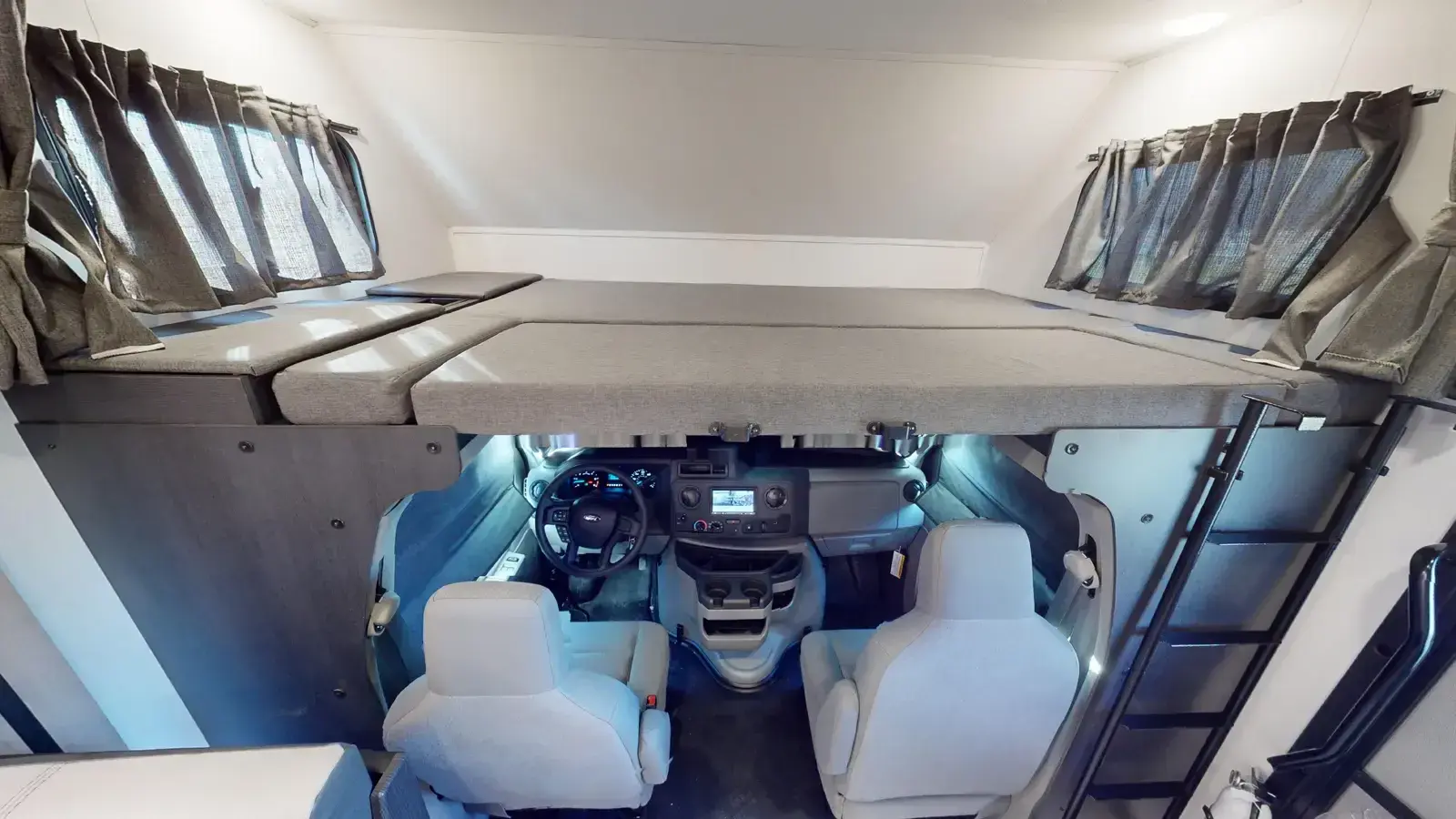

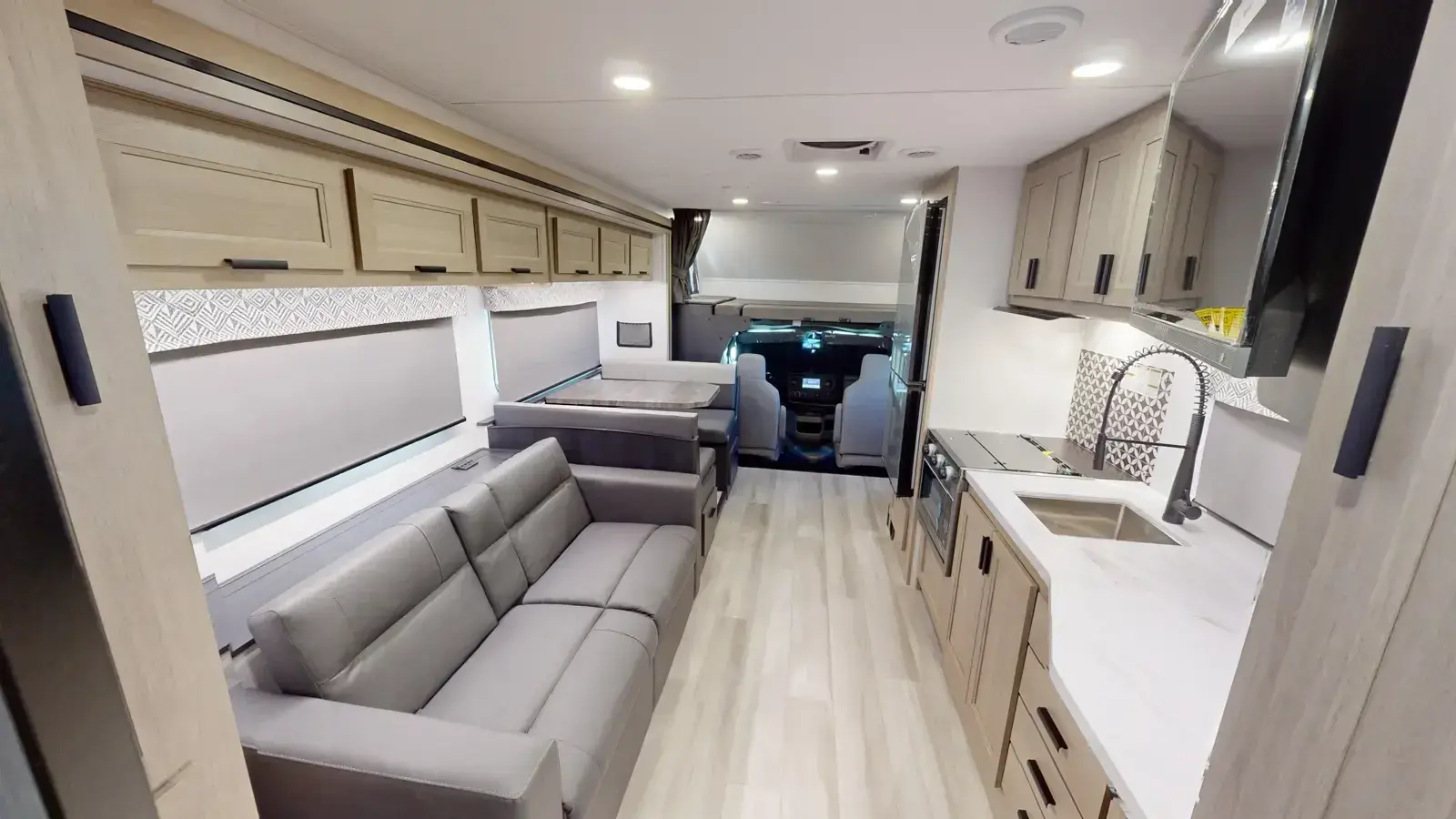

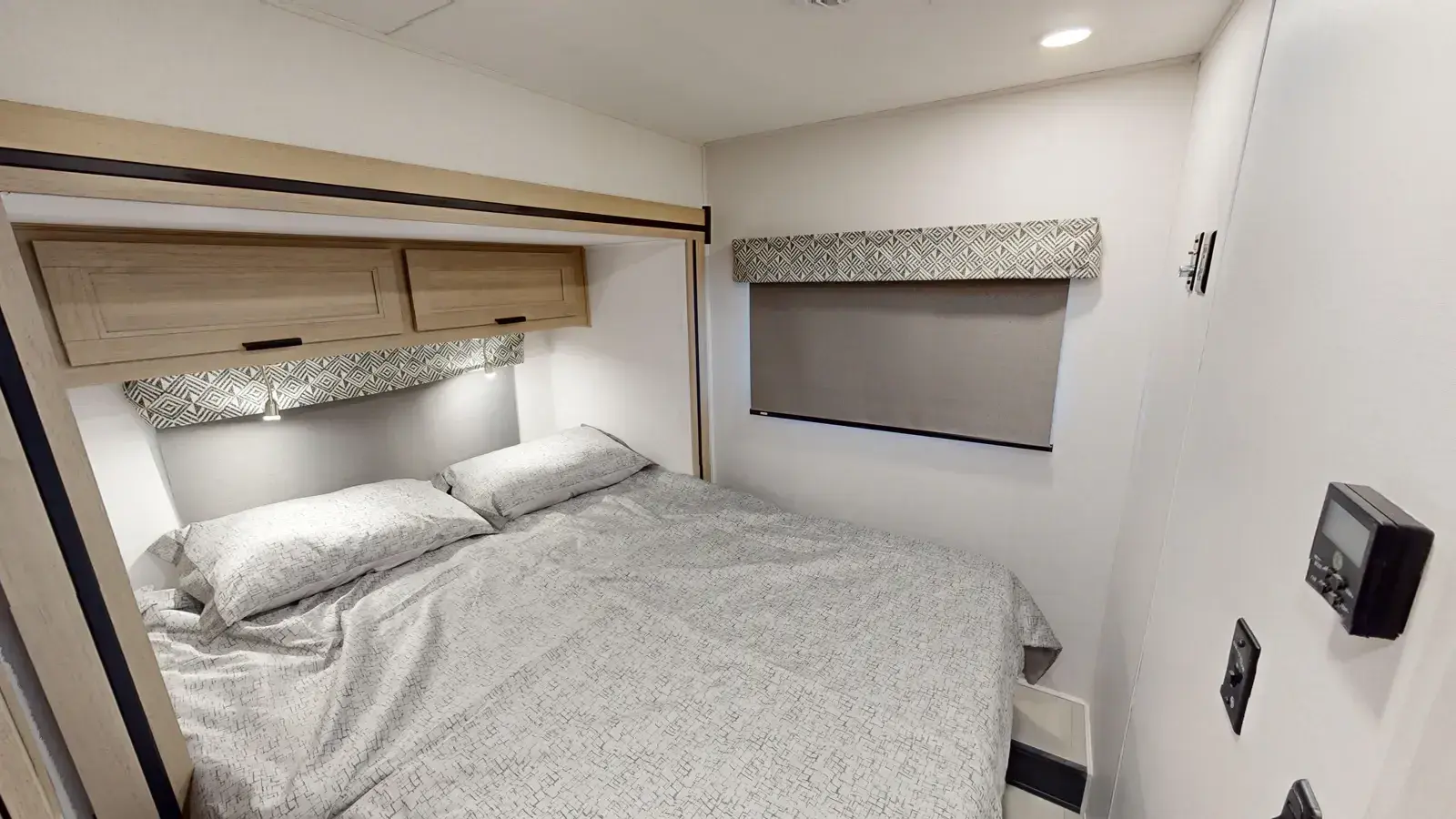

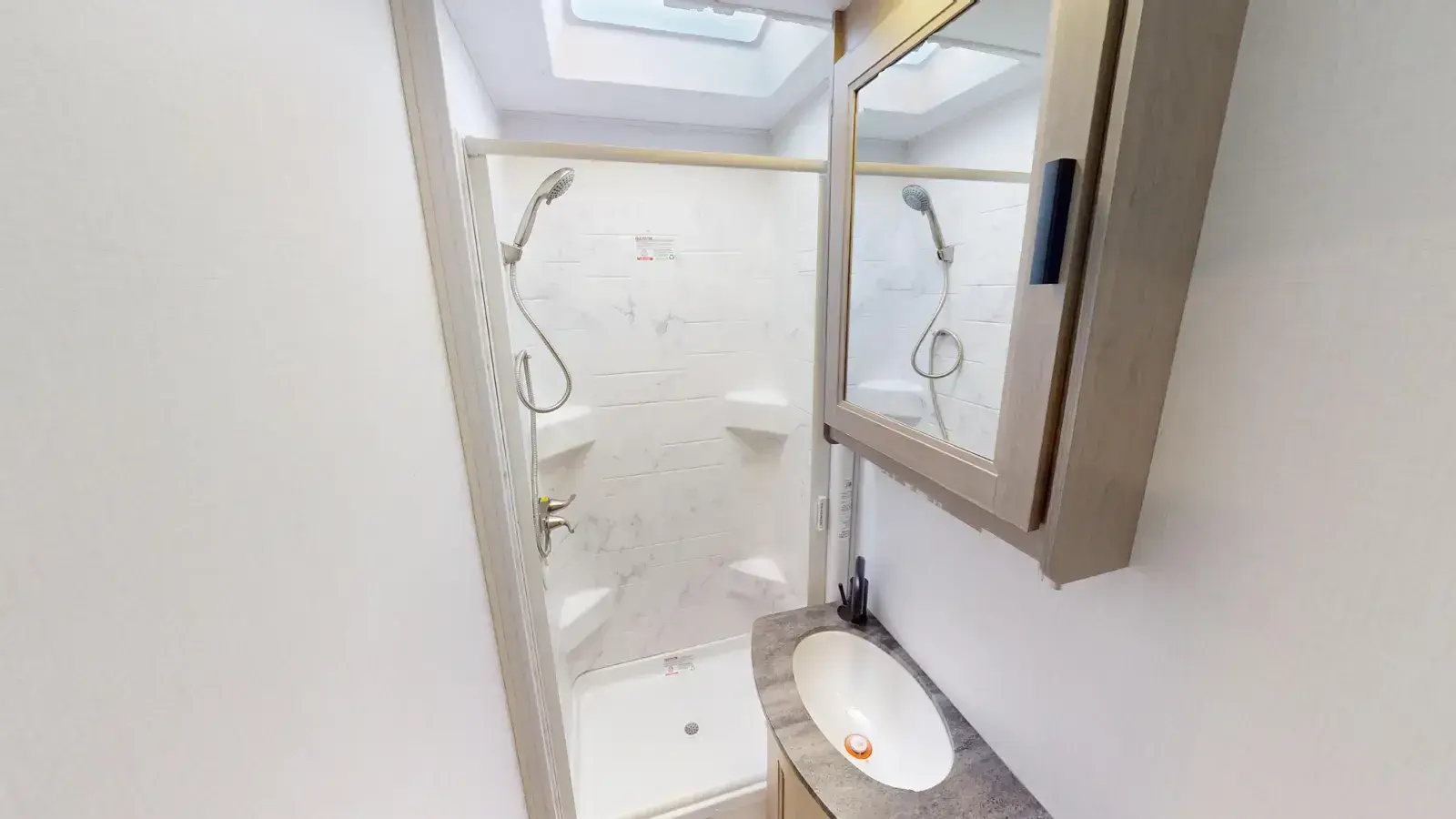

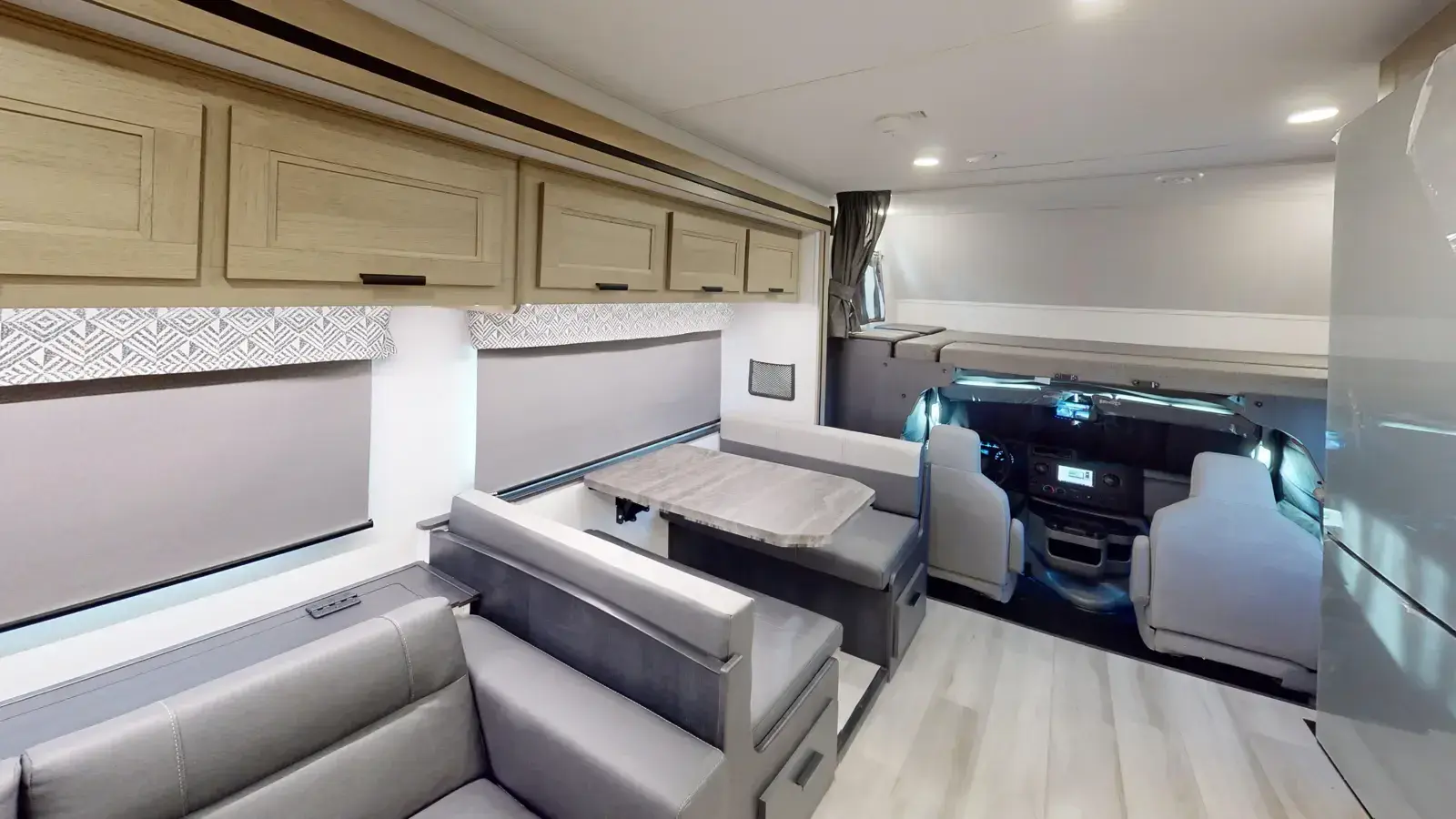

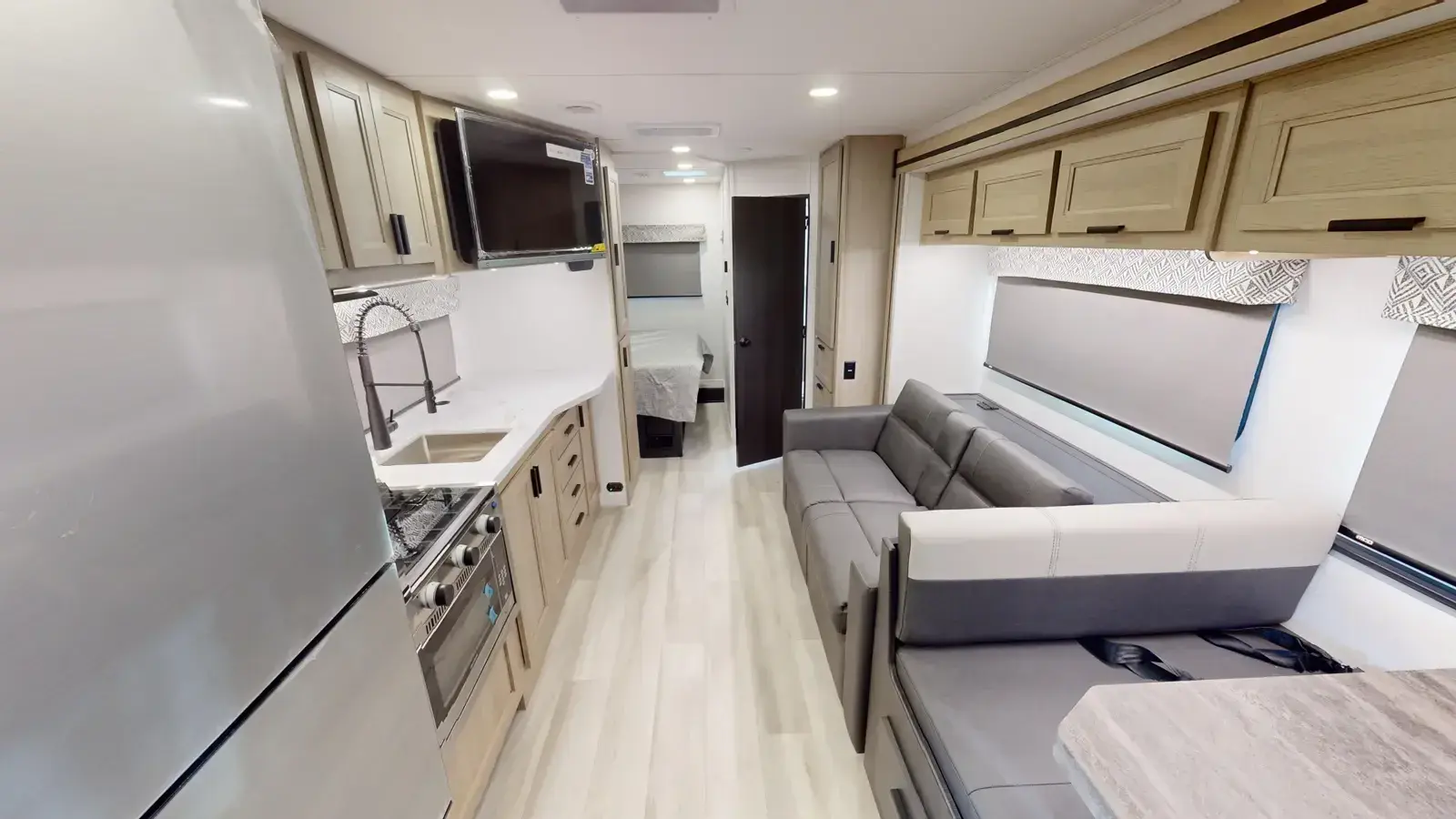

The 2551DSLE has 2 slide outs, 1 on the off-door side and 1 on the door side. Exterior features include a 12 ft. 6 in. awning and it is built on the Ford E-450 chassis. Interior layout from front to back includes: front 60 x 80 cab over bunk; off-door side slide out holding a sofa, overhead cabinet and dinette; door side kitchen with an overhead cabinet, 12V TV with workstation below, sink, stovetop with convection microwave and 12V refrigerator; off-ddor side linen storage; rear off-door side corner bathroom with 24 x 32 shower, toilet, sink and medicine cabinet; door side corner bedroom with 60 x 80 Queen bed with wedge mattress, overhead cabinet and wardrobe.

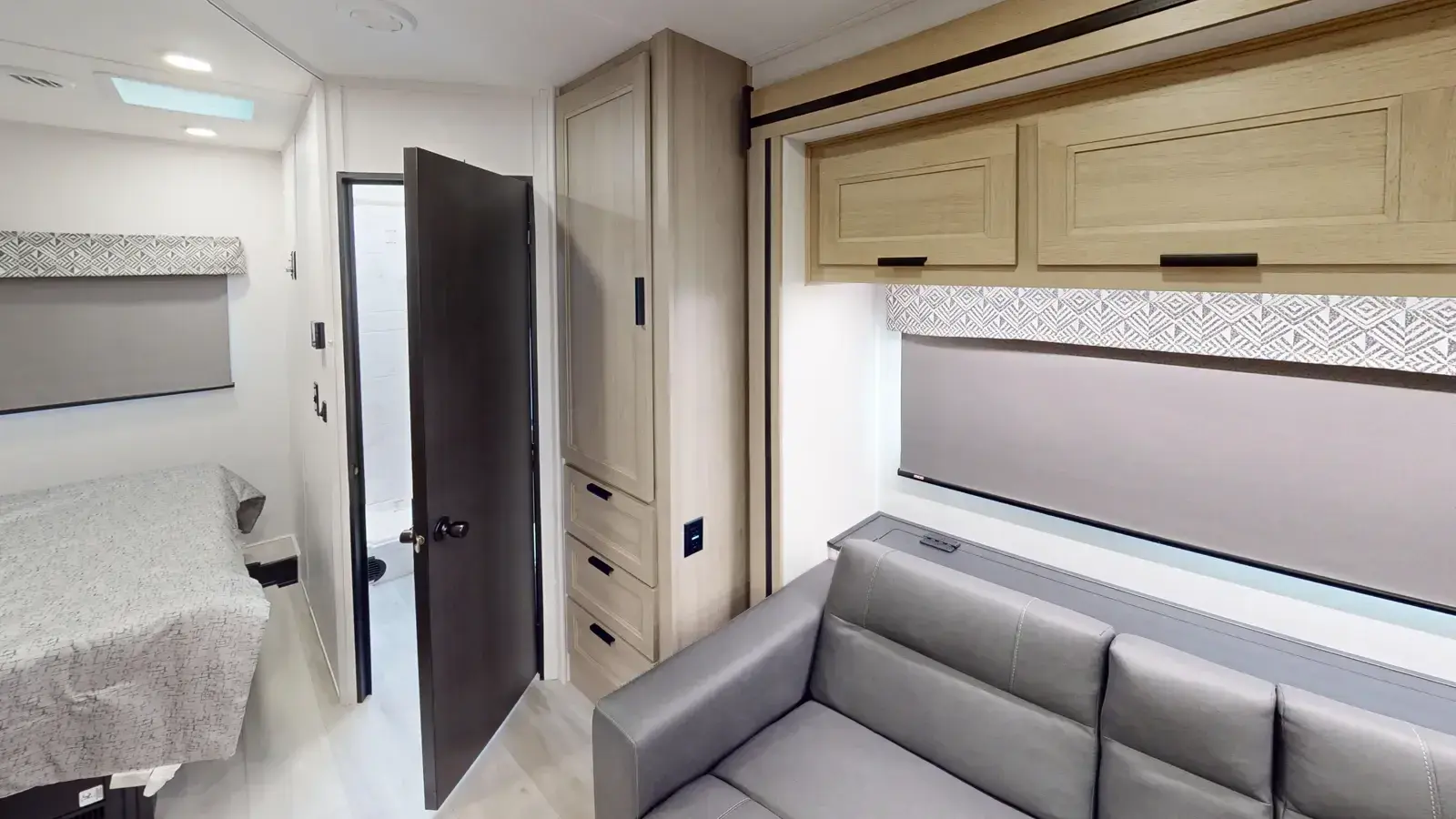

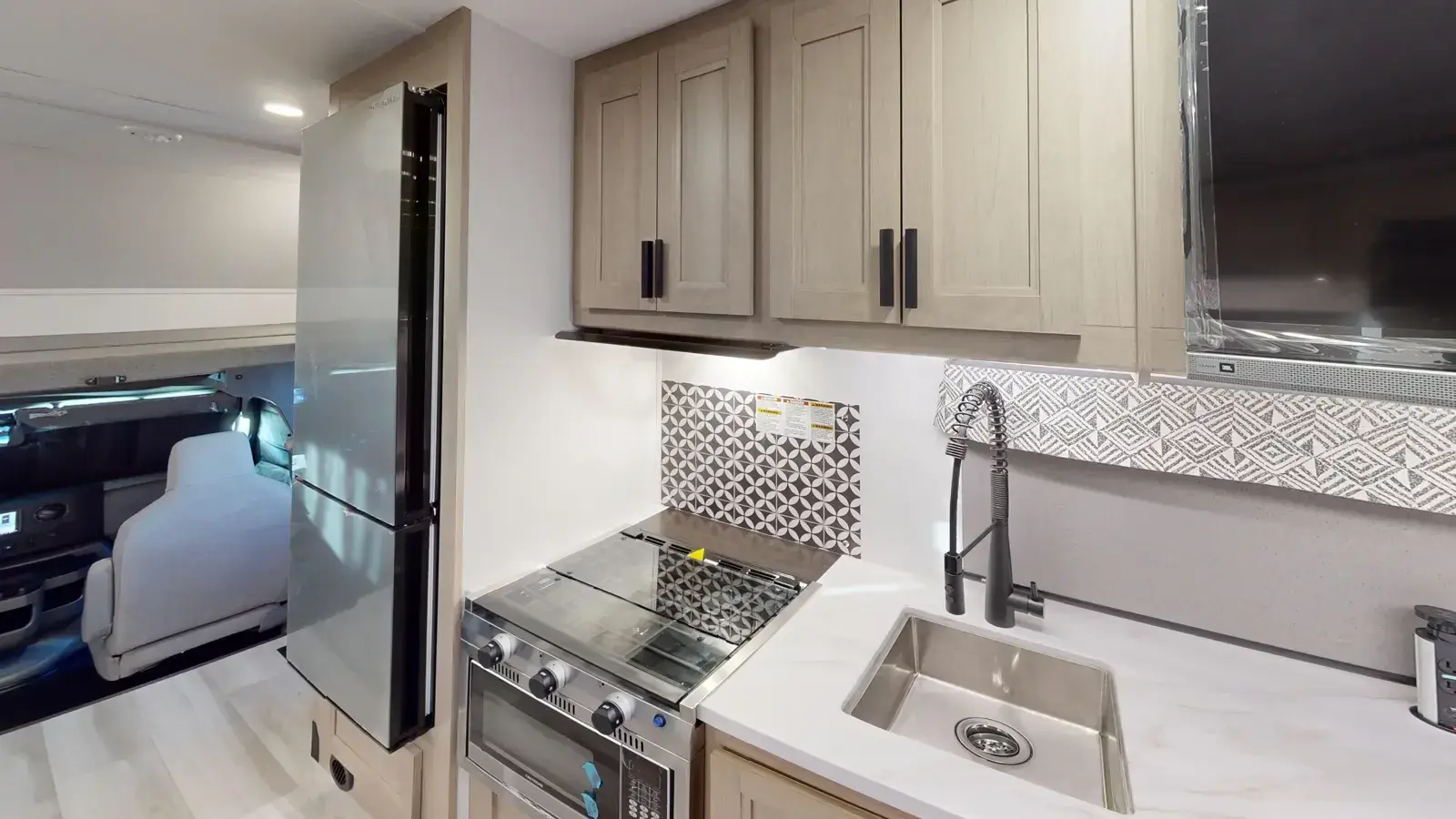

The Forester 2551DSLE kitchen features an undermount convection microwave and 10 cu. ft. refrigerator, plus a 12V TV with work station below. There's a pantry and wardrobe next to the bedroom. You'll enjoy a queen bed, a divider for privacy, and you can add your own TV thanks to the prewired location. The full bathroom includes linen storage just outside the door. And the furniture and bunk over cab provide sleeping space for your guests. This model is built on a Ford E450 chassis.

Wheelbase: 190"
GVWR: 14,500 lb.
GCWR: 22,000 lb.
GAWR Front: 5,000 lb.
GAWR Rear: 9,600 lb.
Fuel Capacity: 55 gal.
LP Tank Capacity: 41 lb.
Exterior Length: 29' 4"
Exterior Height: 11' 4"
Exterior Width: 101"
Fresh Water: 44 gal.
Gray Water: 33 gal.
Black Water: 32 gal.
Awning Size: 12'6"

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
